Numac NS60 Static Compactor
Larger Capacity & Throughput
The Nuamc NS60 is a powerful and versatile static compactor designed and manufactured to be used with a wide range of compressible waste material.
We offer 24 hour remote monitoring system that allows you to know when the compactor is approaching capacity. The NS60 offers a larger capacity and waste collection is made easy. Designed and tested to work with any CHEM compliant containers.

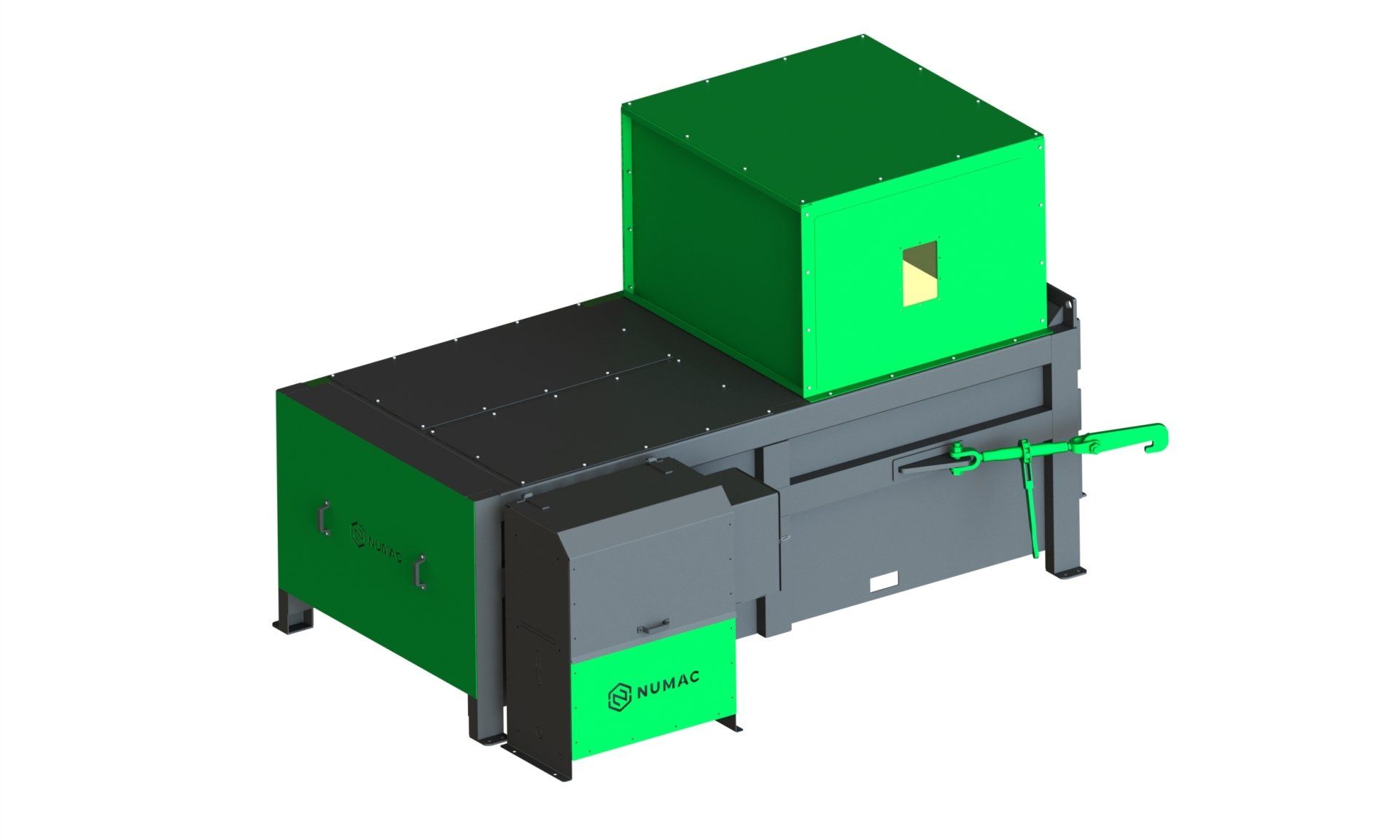

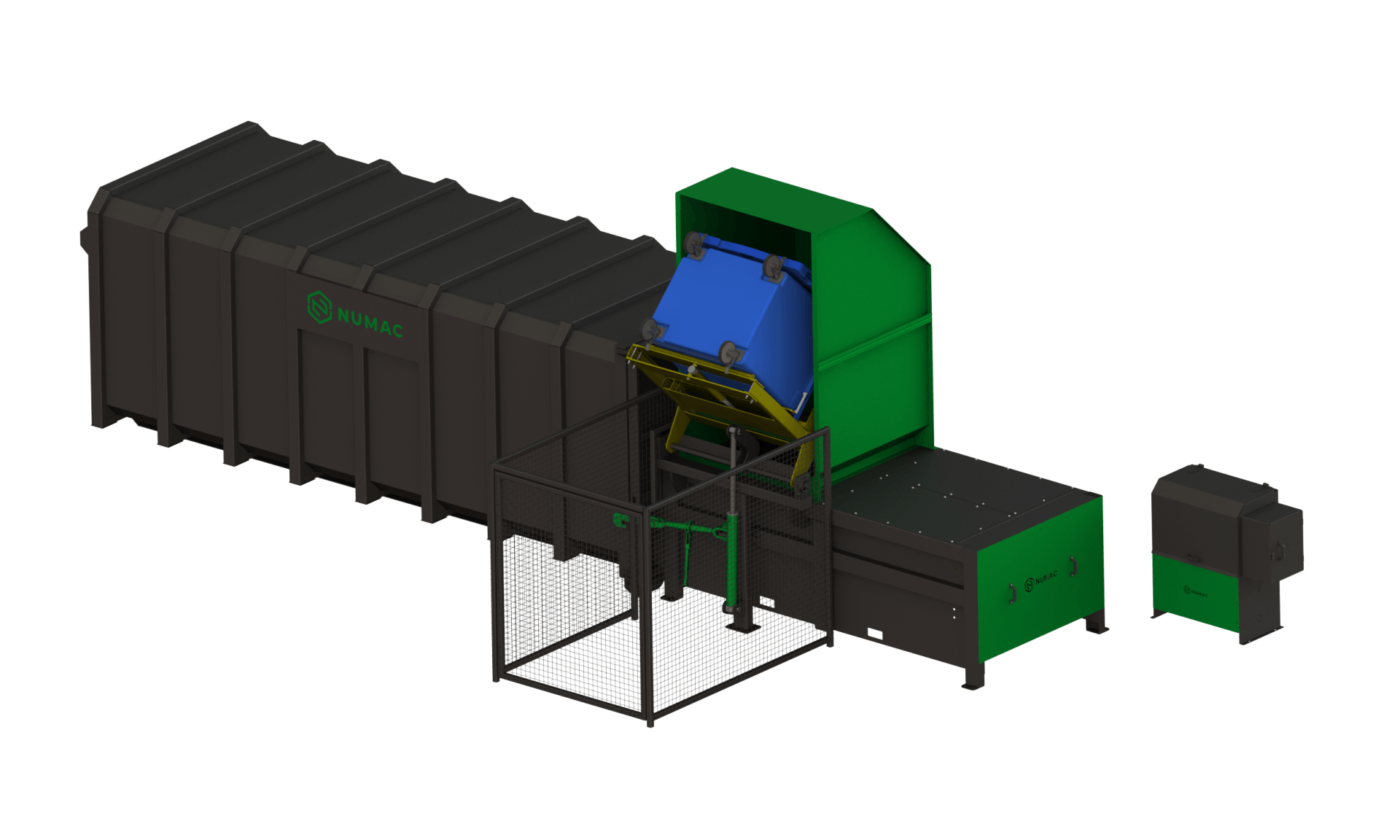

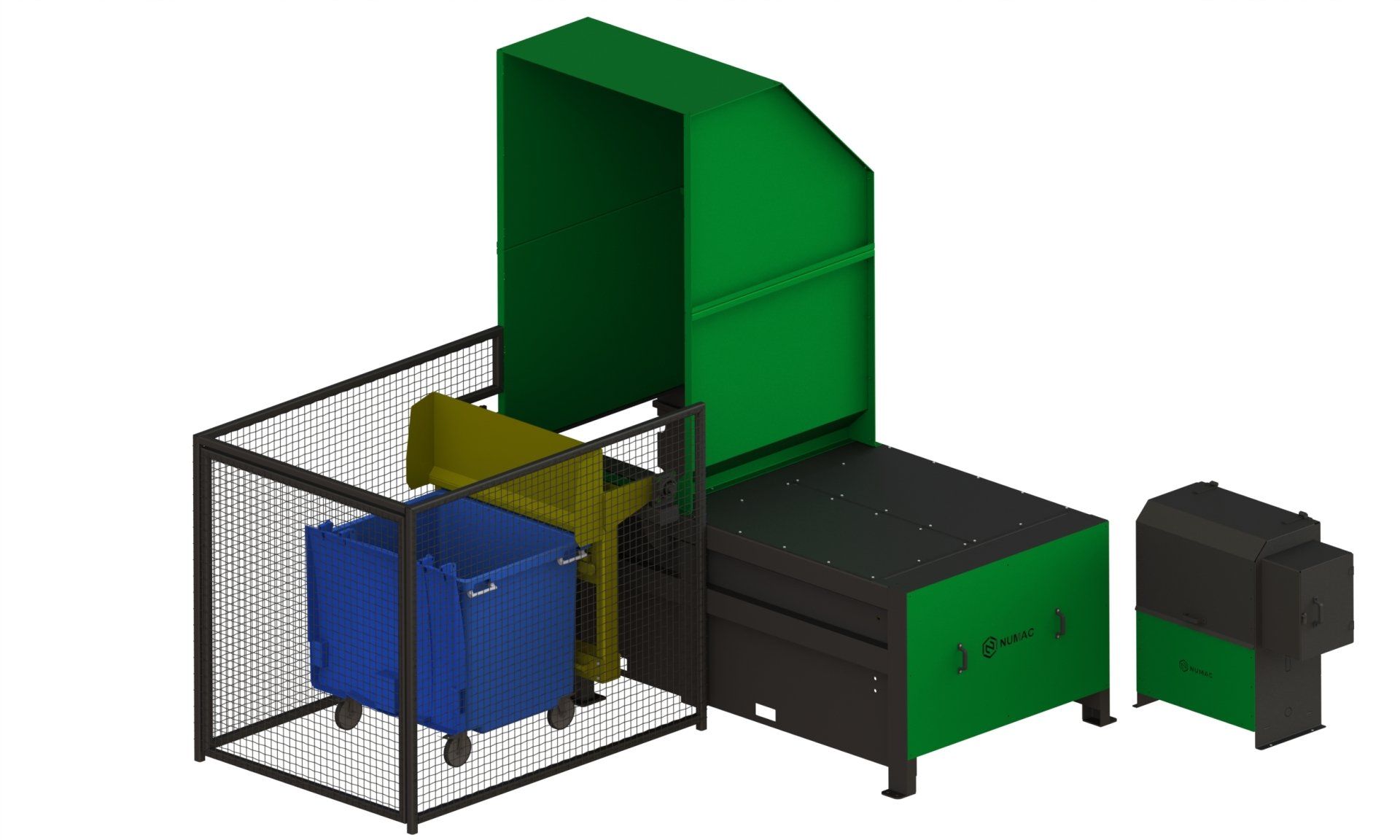

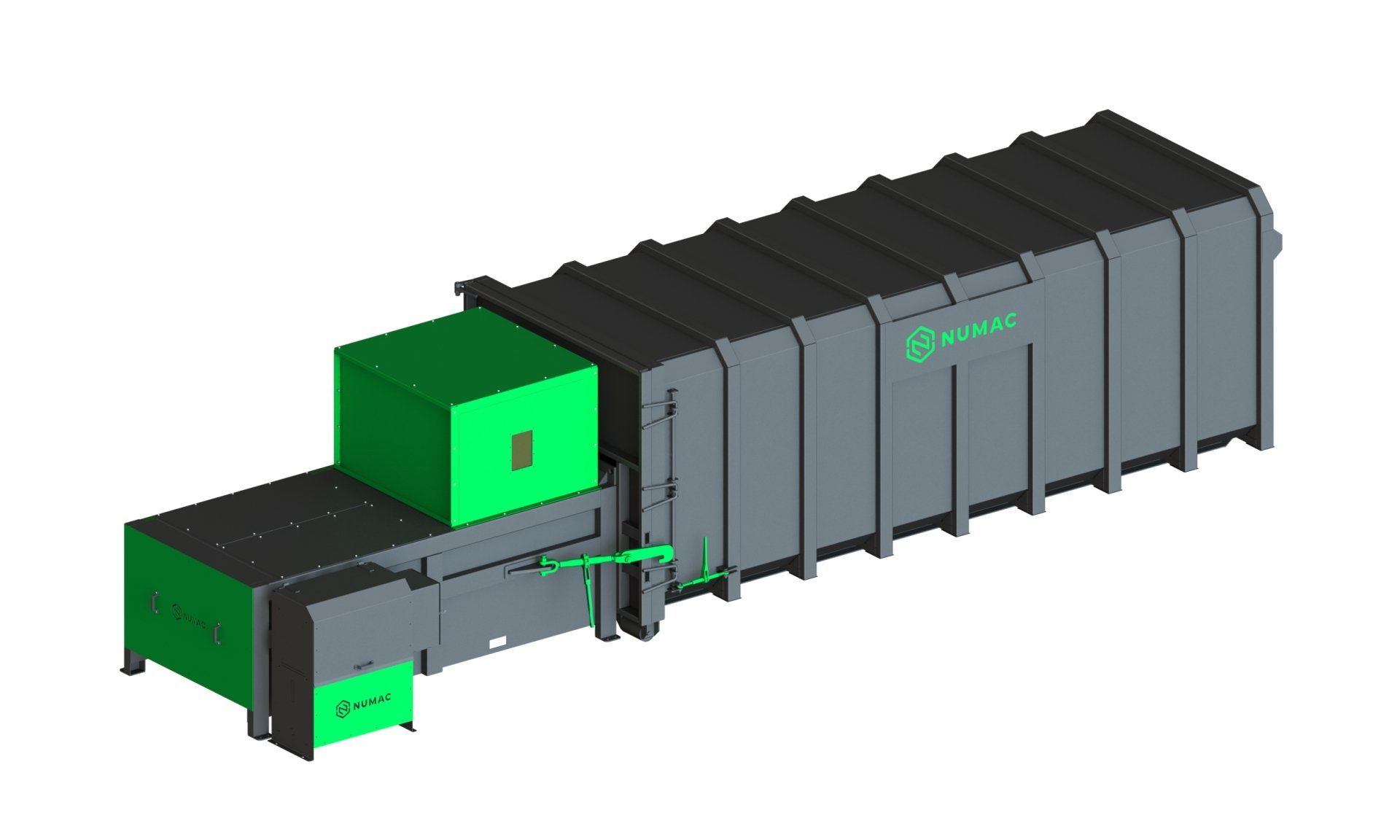

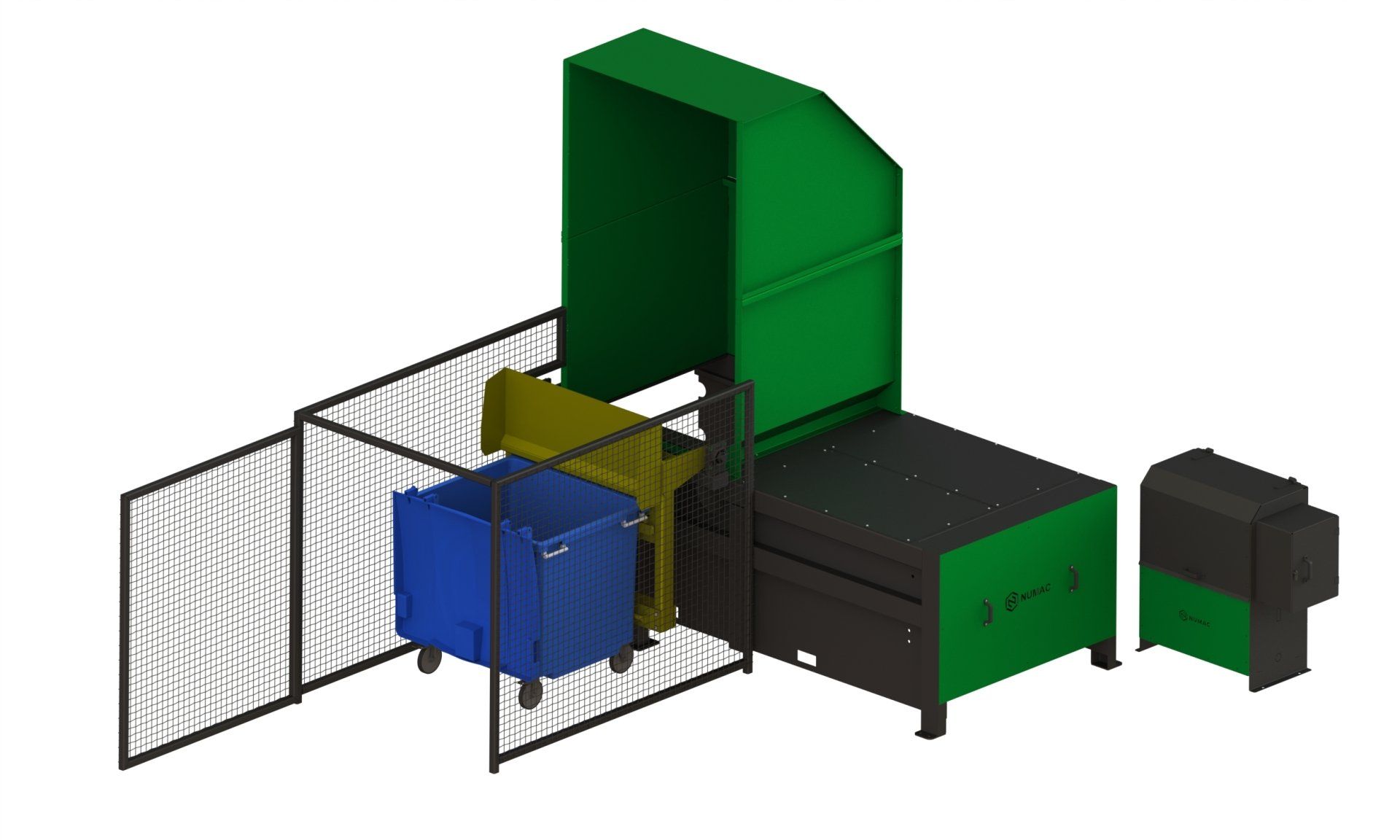

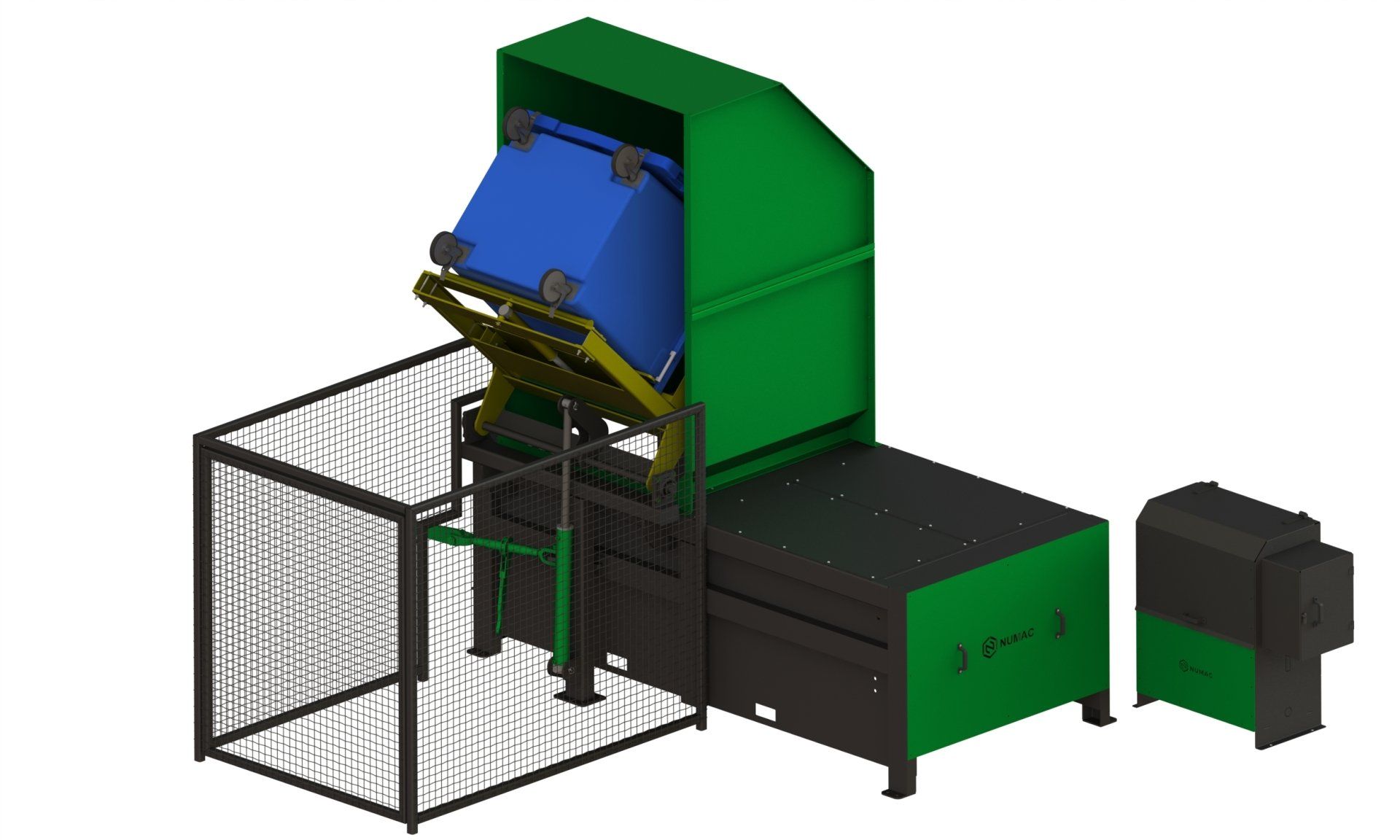

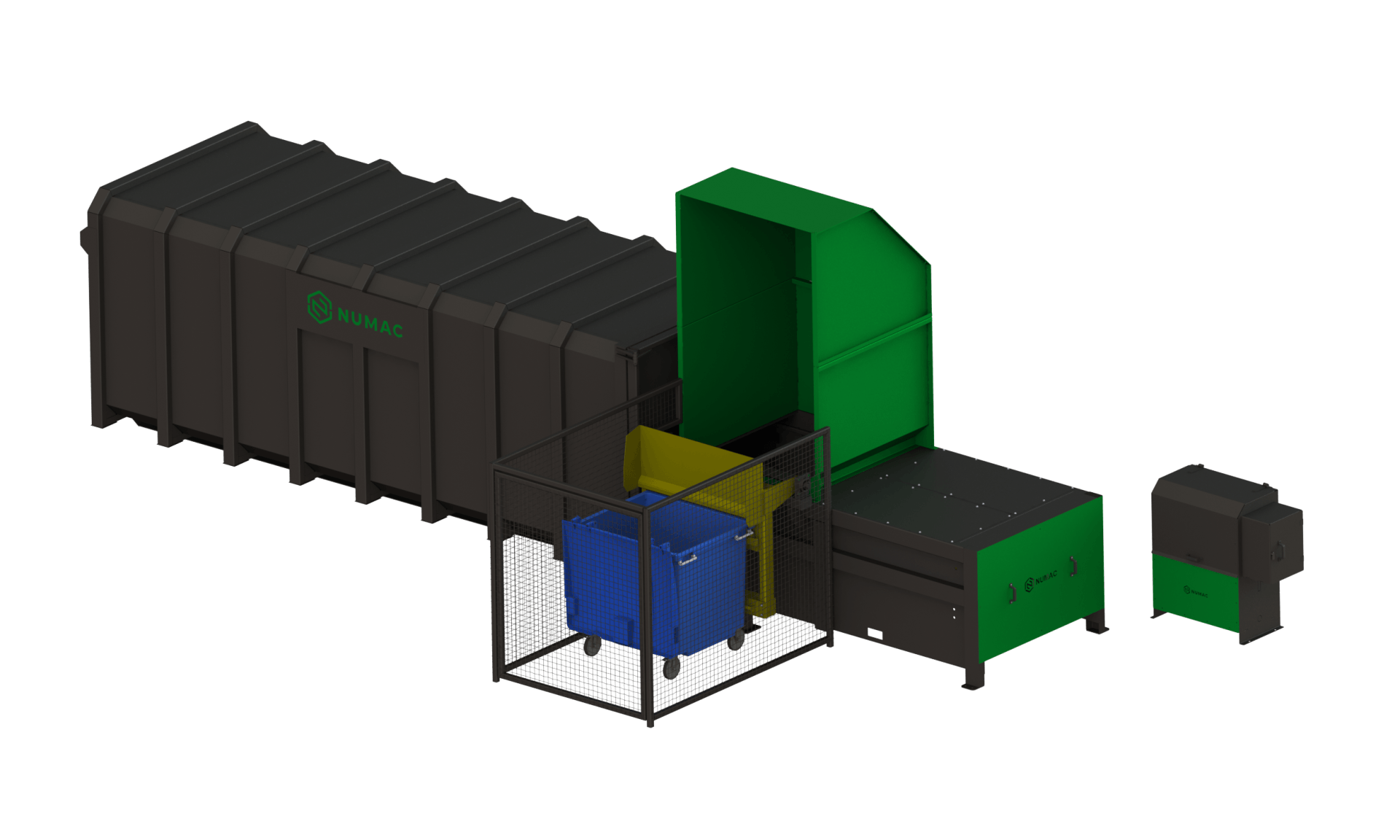

Compact design with multiple loading options available including desk and ground loading, bin lift and chute fed. The NS60 brings a hygienic and practical solution to waste management.
| NS60 SPECIFICATION | DETAIL |
|---|---|
| Charge Box Volume | 1.8m3 |
| Motor Size (Kw) | 7.5/11 |
| Cycle Time (Secs) | 45s |
| Power Supply | 415V 3 Phase |
| Running Pressure (PSI) | 1600 |
| Boost Pressure (PSI) | 2200 |
| Compaction Force (Tonne) | 27 |
| Penetration Into Container (mm) | 400 |
| Machine Weight (Kg) | 3000 |
| Clear Top Opening WxL (mm) | 1500×1260 |
| Ram Bore / Ram Stroke (mm) | 125/1600 |
| Length (mm) | 3500 |
| Width (mm) | 1950 |
| Head Face Area (m2) | 1.08 |
- Efficient Collection & Disposal
- Minimal Space Requirements.
- Provision of 3D CAD drawings

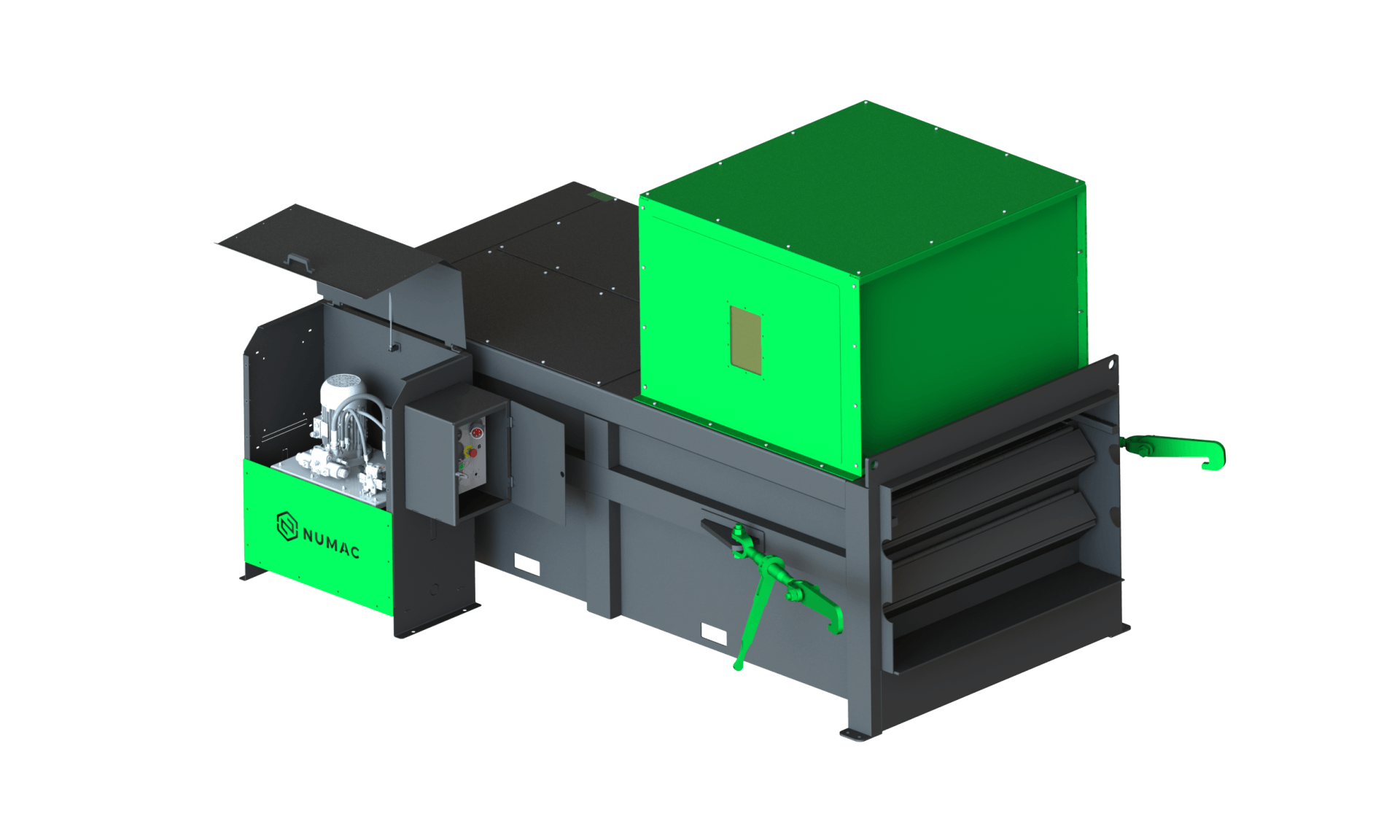

- Easy to use side mounted control panel, security key-pad optional
- Hoppers can be designed to meet customer specification
